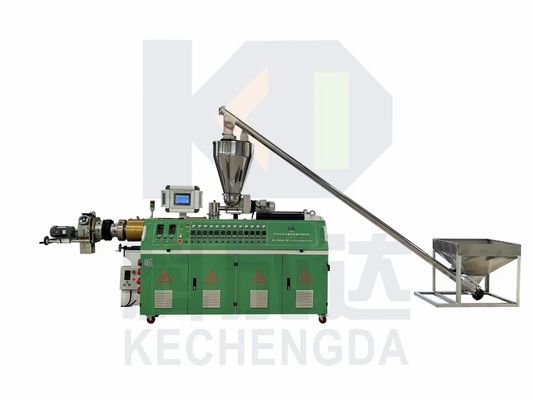

160KW 600L Plastic Pelletizing Machine Plastic Granulator Machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | Plastic Shredder | Product Type | Granulating Extruder |
|---|---|---|---|
| Assembly Structure | Integral Type Extruder | Engagement System | Full Intermeshing |
| Exhaust | Don′t Exhaust | Computerized | Computerized |
| Conveyor Belt Thickness | 8mm | Specification | 38CrMoALA |
| Highlight | 160KW Plastic Pelletizing Machine,600L Plastic Pelletizing Machine,8mm plastic granulator machine |
||
Product Description
2023 New Style Plastic Pelletizing Machine Granulator Machine for Plastic
1. Product Description
Polyethylene polypropylene line for granulation of solid materials
1. All recycled materials can be manufactured after sorting, damaging and cleaning without drying, drying or drying.
2. From raw material crushing, cleaning, feeding to granulation, everything is automated.
3. Make full use of the continuous high pressure heating system to automatically heat the production, avoid continuous heating, save electricity and energy.
4. Split automatic power distribution system is adopted to ensure safe and normal operation of the motor.
5. The screw and barrel are made of imported high strength and high quality carbon structural steel, which is durable.
6. The appearance of the machine is beautiful and generous. The color and spray paint can be selected according to the customer's requirements.
| Item | Major parts name | Detail information |
| 1 | DTC-1000 Screw conveyor | 2.2KW |
| 2 | SRL-Z800/2500 mixer unit | 160KW (inverter motor) effective volume 600L; cool:22KW,effective volume 1500L; Dimension(mm): 5100*4100*4200 (L*W*H), Weight(kg): 7100 |
| 3 | DTC-600 Screw conveyor | 1.5KW |
| 4 | SJSZ92/188 conical twin screw extruder | driving motor 110KW,heating:78KW; cooling:1.85KW;feeding:1.5KW; vacuum exhaust:2.2KW; capacity 400-700kg/h |
| 5 | hot die face cutter | heating 9KW,cut:2.2KW |
| 6 | vibrator | 0.2KW*2pcs. |
| 7 | air blowing+silo | blower:4pcs, 7.5KW; volume of each silo:1CBM. |
3.After-sale service
One year warranty, life-long maintenance;
24 hours online for technical consulting service;
Once Problems on equipment, provide phone or on-site troubleshooting fault response plan.
4.FAQ
Q:Are you a trading company or a manufacturer?
A:We are a manufacturer and we can assure the quality of our machine.
Q:What's your guarantee or the warranty of the quality if we buy your machines?
A:We have one year warranty of the spare parts free of charge. If any quality problems on our side occured in this period ,we will can do some replacement.
Q:How can I install my machine when it arrives?
A:We will send the instruction manual and videos to you,your workers can install the machine accorded as it.If you still have problems in installing it and need our engineer to help,we will arrange our engineer to debugging the machine for you.At same time our engineer will give training lessons to labors in your factory.
Q:How about the spare parts?
A:During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If it is caused by your incorrect operations, we will provide the spare parts at cost price
If you do need any support, please don't hesitate to contact me on.
