Home interior decoration pvc wpc wall panel extrusion production line Wood Plastic Composite making machine

  • Home interior decoration pvc wpc wall panel extrusion production line Wood Plastic Composite making machine
  • Home interior decoration pvc wpc wall panel extrusion production line Wood Plastic Composite making machine
  • Home interior decoration pvc wpc wall panel extrusion production line Wood Plastic Composite making machine
  • Home interior decoration pvc wpc wall panel extrusion production line Wood Plastic Composite making machine
  • Home interior decoration pvc wpc wall panel extrusion production line Wood Plastic Composite making machine
Place of Origin Qingdao,Shandong,China
Brand Name Kechengda
Model Number SJSZ-65/132
Minimum Order Quantity 1
Price USD 30000~80000
Packaging Details wrapping film
Delivery Time 35 work days
Payment Terms T/T
Supply Ability 100

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Screw Design Single-screw Screw L/D Ratio 28:1
Condition New Plastic Processed PE, PP, PVC, WPC
Application Sheet, Profile, Wall Panel Showroom Location Viet Nam, Indonesia
Place Of Origin Shandong, China Weight 15000 KG
Warranty 1 Year Key Selling Points Competitive Price
Applicable Industries Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction Works Video Outgoing-inspection Provided
Warranty Of Core Components 1 Year Core Components Pump, Gear, PLC, Pressure Vessel, Engine, Screw
Machinery Test Report Provided Screw Material 38CrMoALA
Screw Diameter (mm) 120 Mm Screw Speed (rpm) 38 Rpm
Voltage 380V 3P 50HZ Dimension(L*W*H) 35*5*3M
Raw Material PP Granules Capacity 350-500kg/hr
Usage Plastic Forming Machine Product Type Extrusion Production
Motor Brand SIENEMS Power(W) 250KW
Automatic Grade Full-automatic
Highlight

Wood Plastic Composite making machine

,

Plastic Composite making machine

,

wpc wall panel extrusion line
Leave a Message
Product Description
Home interior decoration pvc wpc wall panel extrusion production line Wood Plastic Composite making machine 0
Machine List
Machine List
No.
Name
Qty.
Remark
1
Spring loader for extruder
1

2
SJZ series conical twin screw extruder
1

3
Extrusion mould unit
1
Change mould for different shape
4
Vacuum calibration Table
1

5
Haul off unit
1

6
Lamination & hot stamping machine(inline)
1
Change film for different pattern
7
Blade Cutter
1

8
Stacker
1

Main technical specifications of machines
Maximum panel width
300mm
400mm
600mm
Profiles
Extruder model
SJZ 55
SJZ 65
SJZ 65/SJZ80
SJZ 51
Extruder motor
22kw
37kw
37kw/55kw
15kw
Production speed
2m/min
4m/min
3m/min
2m/min
Production speed
120kg/h
220kg/h
220kg/h / 400kg/h
100kg/h
Home interior decoration pvc wpc wall panel extrusion production line Wood Plastic Composite making machine 1

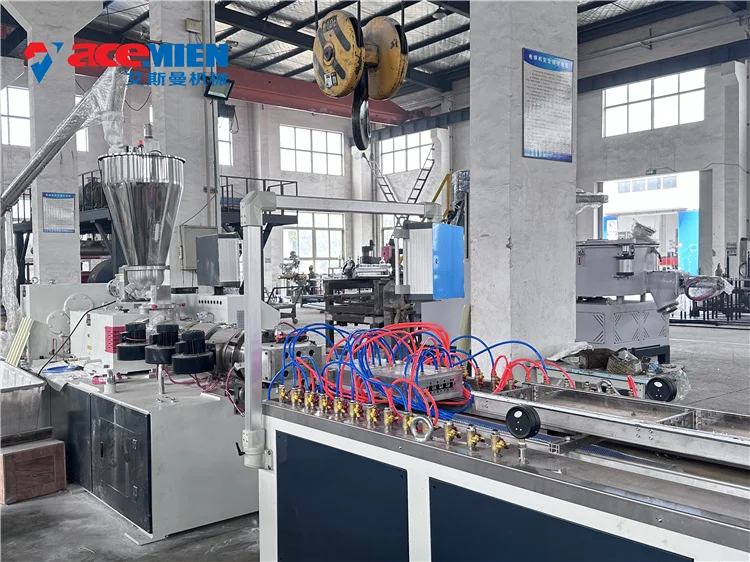

Extrusion System

Name: SJZ65/132 Conical twin screw extruder
Technical parameters:
a.Main motor :37kw Siemens Brand.
b.Inverter:ABB
c.Screw barrel: 38CrMoAl, hardness Hv950 or more , high-efficiency and long service life.
d. Vacuum pump : Double station.

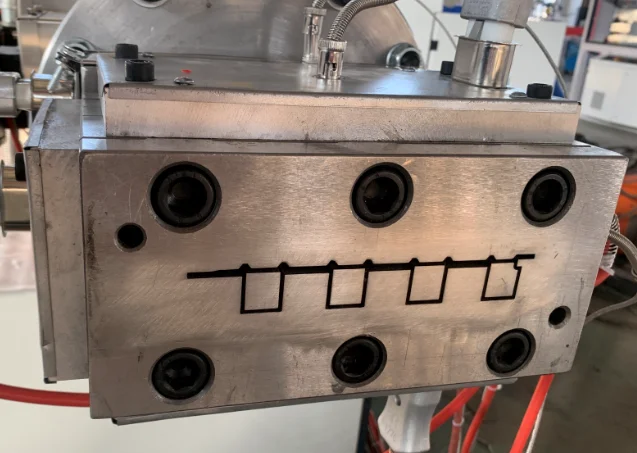

Mould Part

Name: Extrusion mould
Technical parameters:
a.special design for PVC profile
b.Mirror polishing Cr plating,
c.Three dimensional flow simulation software design.

Home interior decoration pvc wpc wall panel extrusion production line Wood Plastic Composite making machine 2
Home interior decoration pvc wpc wall panel extrusion production line Wood Plastic Composite making machine 3

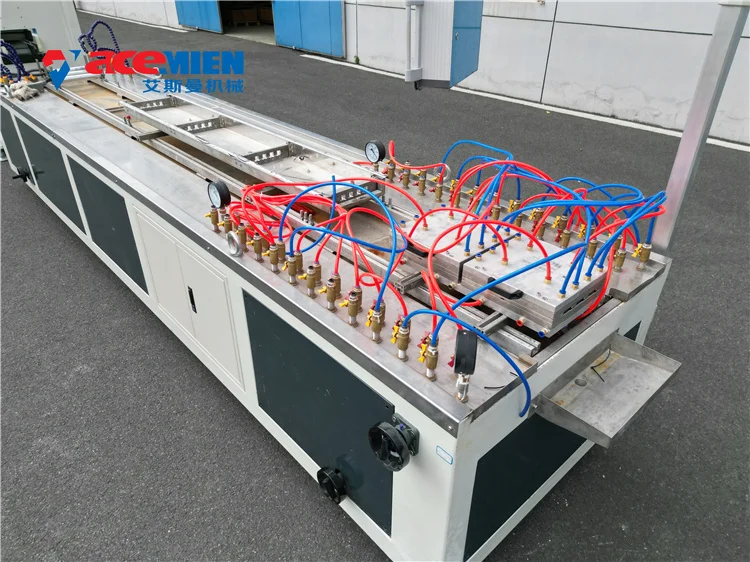

Calibration Table

Name: Calibration table with forming mould
Technical parameters:
a.Up and down, left and right manually adjusted
b.With Infrared device, guarantee speed synchronously with Haul-off speed.

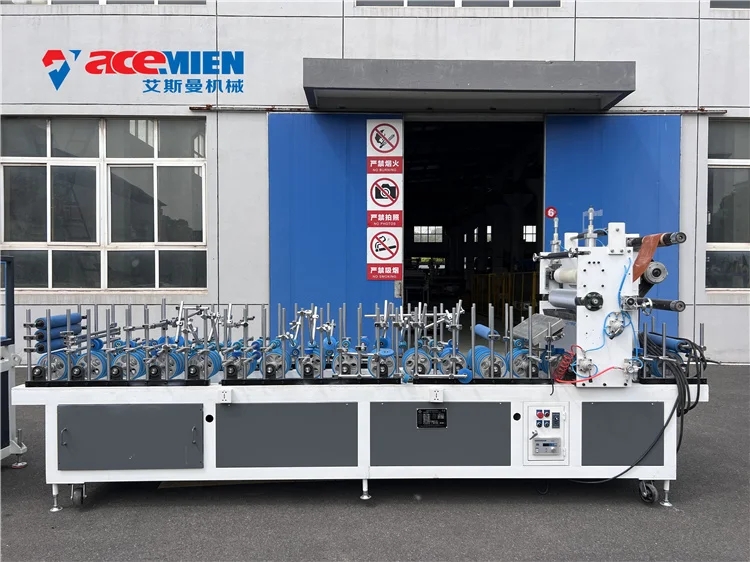

Lamination & Hot Stamping Machine

Name: Lamination & hot stamping machine (in line)
Technical parameters:
a.It has two function: hot stamping and laminating
b.Working thickness and width can be adjusted

c.Equipped with foil tension force control system.

Home interior decoration pvc wpc wall panel extrusion production line Wood Plastic Composite making machine 4
