Plastic PVC Cover Ceiling Panel Making Machine PVC Profile/Wall Panel Production Line/Extruder Machines

  • Plastic PVC Cover Ceiling Panel Making Machine PVC Profile/Wall Panel Production Line/Extruder Machines
  • Plastic PVC Cover Ceiling Panel Making Machine PVC Profile/Wall Panel Production Line/Extruder Machines
  • Plastic PVC Cover Ceiling Panel Making Machine PVC Profile/Wall Panel Production Line/Extruder Machines
  • Plastic PVC Cover Ceiling Panel Making Machine PVC Profile/Wall Panel Production Line/Extruder Machines
  • Plastic PVC Cover Ceiling Panel Making Machine PVC Profile/Wall Panel Production Line/Extruder Machines
  • Plastic PVC Cover Ceiling Panel Making Machine PVC Profile/Wall Panel Production Line/Extruder Machines
Place of Origin Qingdao,Shandong,China
Brand Name Kechengda
Model Number SJSZ-65/132
Minimum Order Quantity 1
Price usd 26000~60000
Packaging Details wrapping film
Delivery Time 35 work days
Payment Terms T/T
Supply Ability 100

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Screw Design Double-screw Screw L/D Ratio 30:1
Condition New Plastic Processed PVC
Application Profile Weight 7000 KG
Warranty 1 Year Key Selling Points High Productivity
Applicable Industries Hotels, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Construction Works , Food & Beverage Shops, Advertising Company Video Outgoing-inspection Provided
Warranty Of Core Components 1 Year Core Components Pressure Vessel
Machinery Test Report Provided Screw Material 38CrMoAlA
Screw Diameter (mm) 120 Screw Speed (rpm) 36 Rpm
Voltage 220-460V Dimension(L*W*H) 23x2x2m
Power (kW) 60 After-sales Service Provided Online Support
Capacity/output 80-300kg/hour Raw Material PVC, Caco3, Stabilizer, CPE------
Caco3 Ratio 30%-200% Further Processing Hot Stamping, Printing, Laminating
Auxiliary Machines Mixer, Crusher, Pulverizer
Highlight

wall Production line Panel Making Machine

,

PVC profile Panel Making Machine

,

extruder Machines Panel Making Machine
Leave a Message
Product Description
General description



1.The equipment adapts to various formulations, the ratio of calcium can be increased up to 50%-250%, while the required accessories can be reduced by 30%

2.The ceiling the extruder products has an exquisite appearance and uniform plasticization
3. Laser tracking eliminates problems regarding the extrusion flow rate, which helps achieve automation of the entire extrusion process

4 The PVC ceiling extrusion machine has auto-alarm functions in case of emergency, through the use of PID controller



Which is mainly used in the area of PVC ceiling, integrated ceiling, luggage

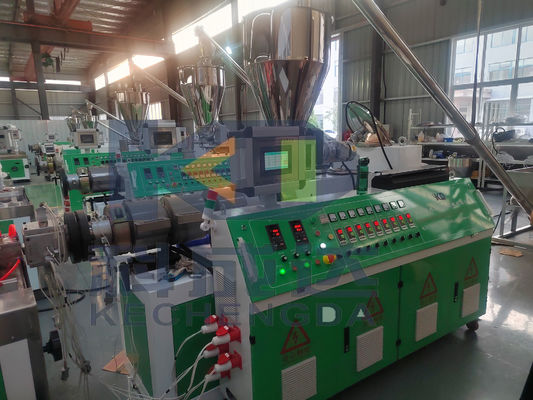

board, ceiling corner etc. the equipment consists of conical twin-screw extruder
vacuum shaping table, tractor, cutter and stacker, It has high-techlaser tracking
device exclusive, to ensure not only extrude PVC ceilings with high quality and
output also greatly reduce the cost of production, which get appreciations from
customers



Machine details



Model SJSZ48(50) SJSZ55 SJSZ65
Main power(kw) 15 22 37
Product width(mm) 300 200-600 300-600
Total Power(kw) 34 47 66
Output capacity(kg/h) 110-160 120-190 150-210
Length of line 18.5 20 21.5
Air compression(mpa/m3) 0.5 0.6 0.6
